MOTION PRO - PIVOT SUSPENSION VISE

Notify me when this product is available:

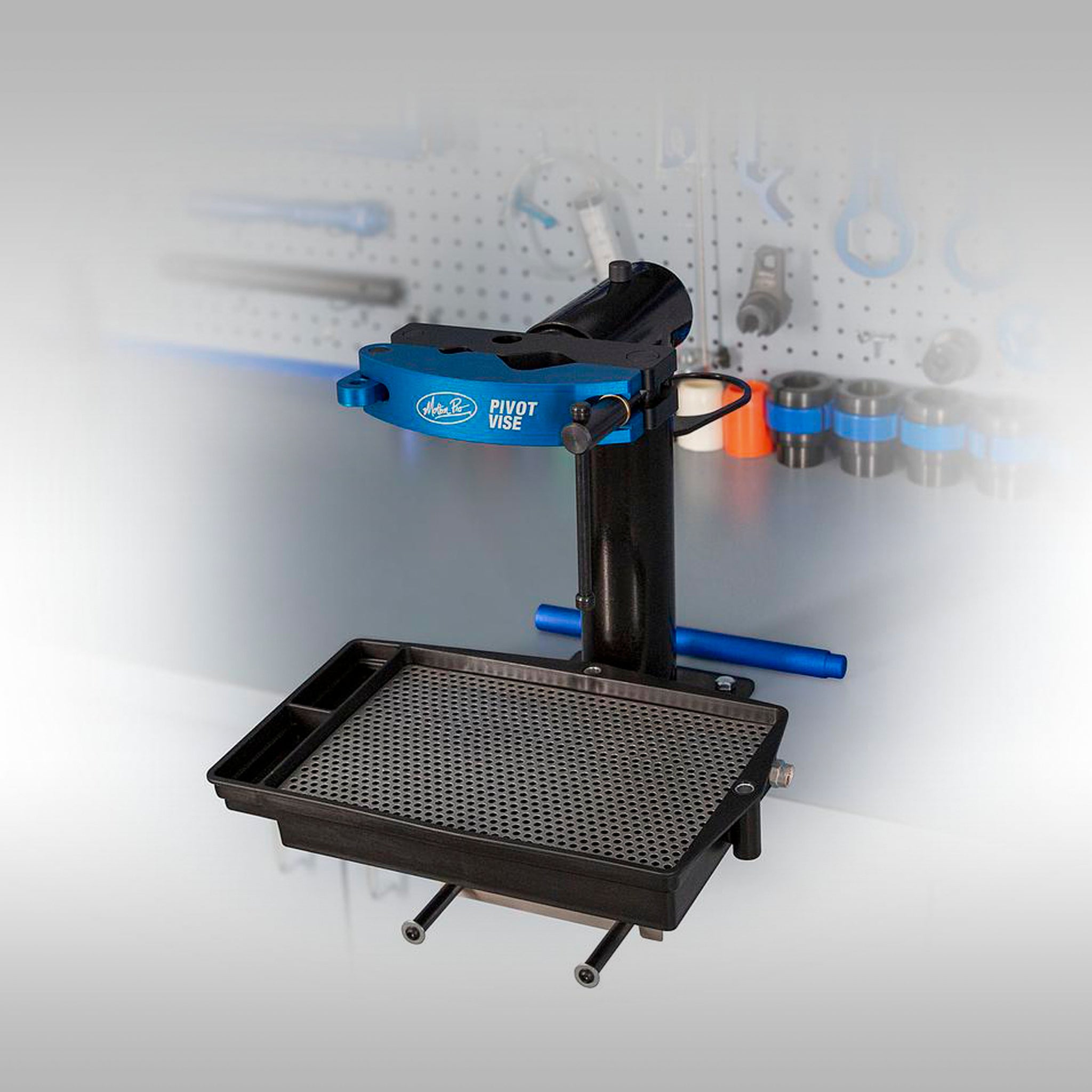

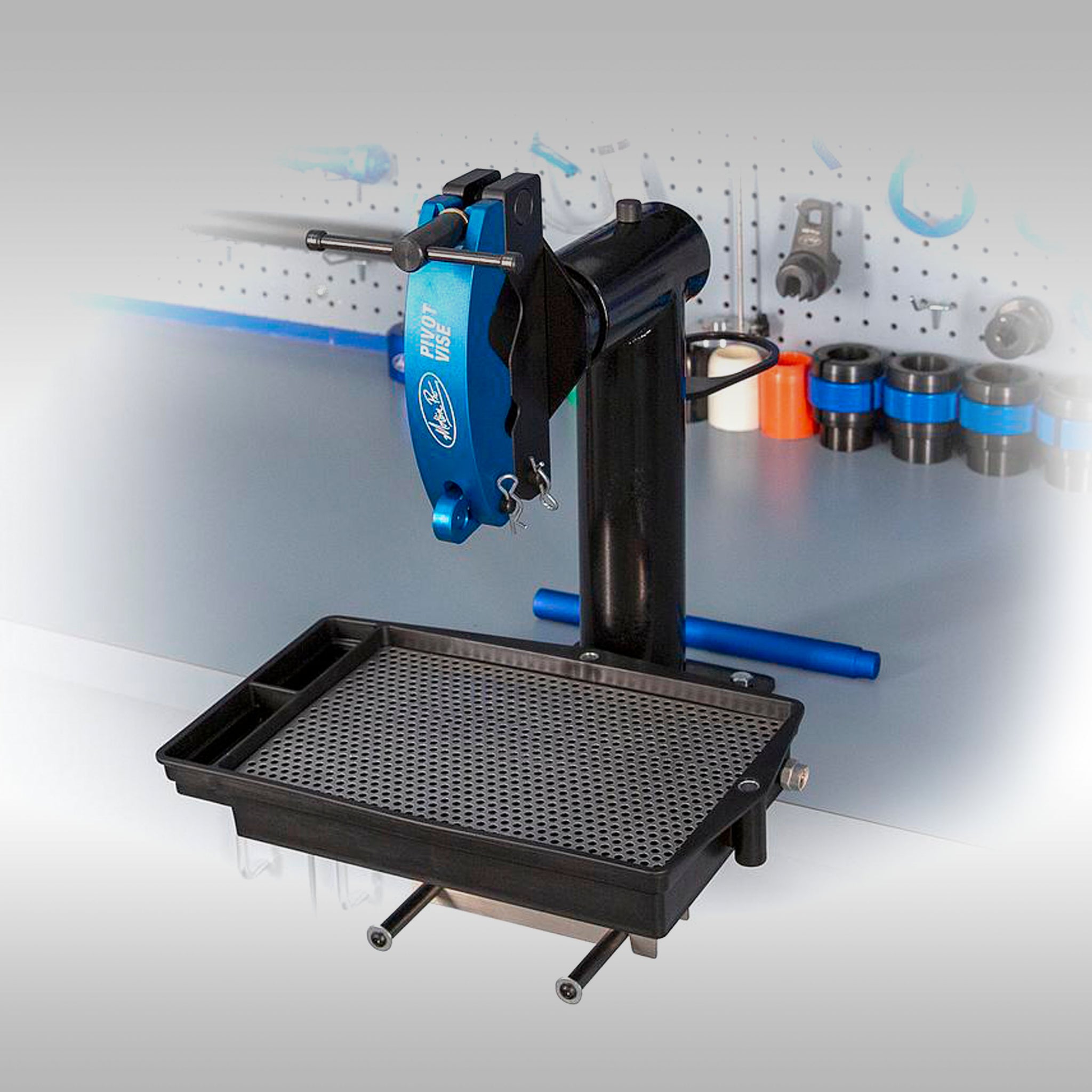

Motion Pro Pivot Suspension Vise

This vise will definitely up your suspension game. If you own a number of motorcycles and service your own suspension, there are few things that will make your life better and help you do a better job than this tool.

  • Designed to make suspension service simple and quick
  • Holds shocks and forks securely while you change oil, re-valve, or change seals

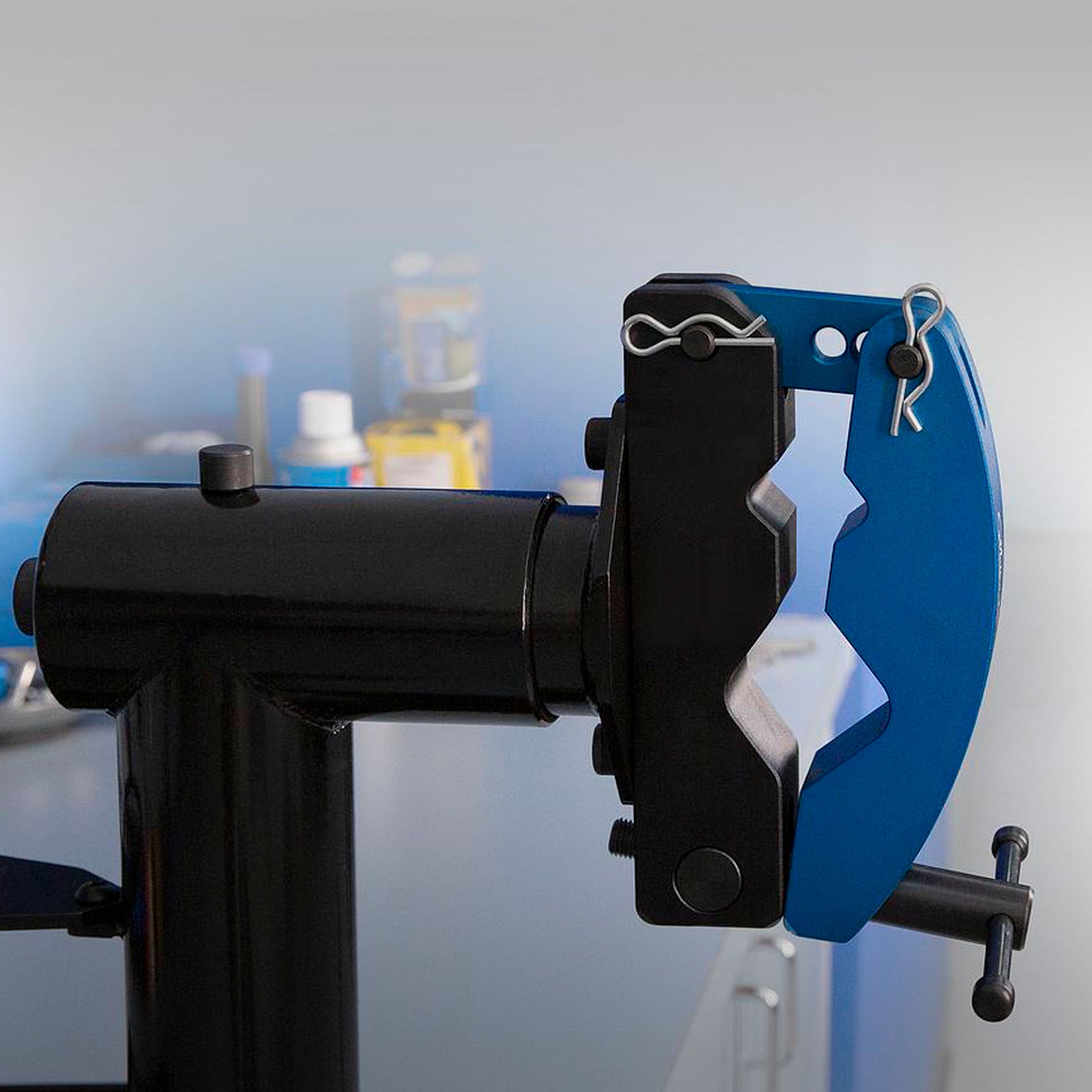

  • Pivoting head holds parts in any position, with mechanical stops every 45 degrees
  • Aluminum Soft Jaw Vise holds cylindrically shaped parts utilizing a 4 point grip system
  • Large side holds 40 mm to 61 mm diameter parts
  • Small side holds 16 mm to 34 mm diameter parts
  • Steel Frame is rigid yet has a small footprint, with 4 pre-drilled holes in the base for secure mounting to a bench

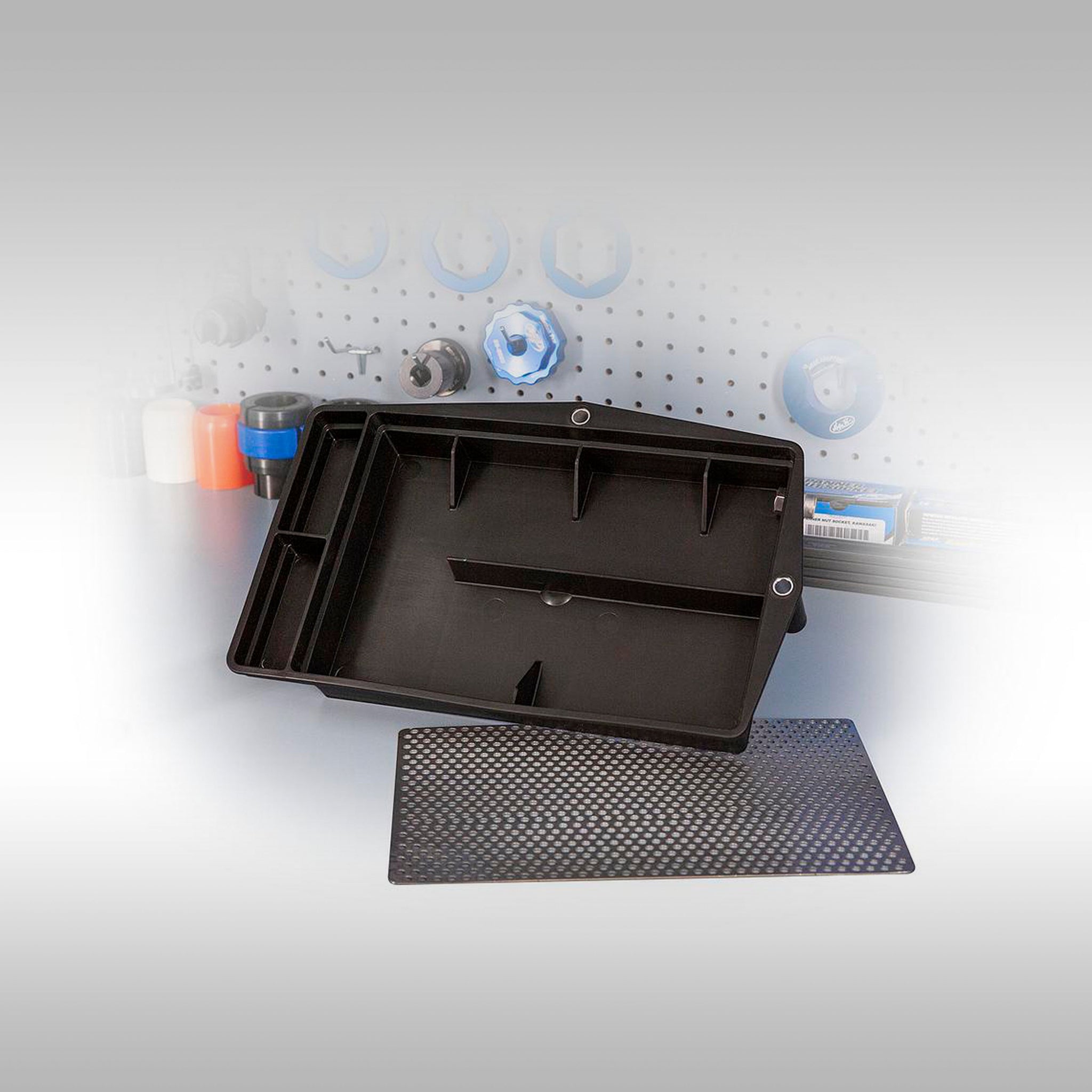

  • Movable fluid catch pan with mesh insert, and threaded drain bung

HOW IT WORKS ON FORKS
  • Soft Jaw Fork Peg holds fork slider up for removal of dust seal and seal retaining clip
  • Repositionable bottom slide bar holds forks compressed while bleeding air (priming cartridge) during reassembly and is an excellent platform for adding, adjusting and taking fork oil level measurements
  • Can be used to assist in removing compression valve assembly (use of stock front axle required)
HOW IT WORKS ON SHOCKS
  • Holds shock firmly around shock body, shaft or shock reservoir
  • Facilitates removal of piston rod and seal head
  • Facilitates removal of shock reservoir caps, chamber pistons or bladder
  • Holds shock to remove spherical bearings or needle bearings
  • Holds shocks for removal of shock spring

For the Motion Pro Shock Compression Tool:  CLICK HERE



For all Motion Pro products available from TMBR MOTO: CLICK HERE


If you have any questions about tools email us at: tmbrmoto@tmbrmoto.com
